VARIUS

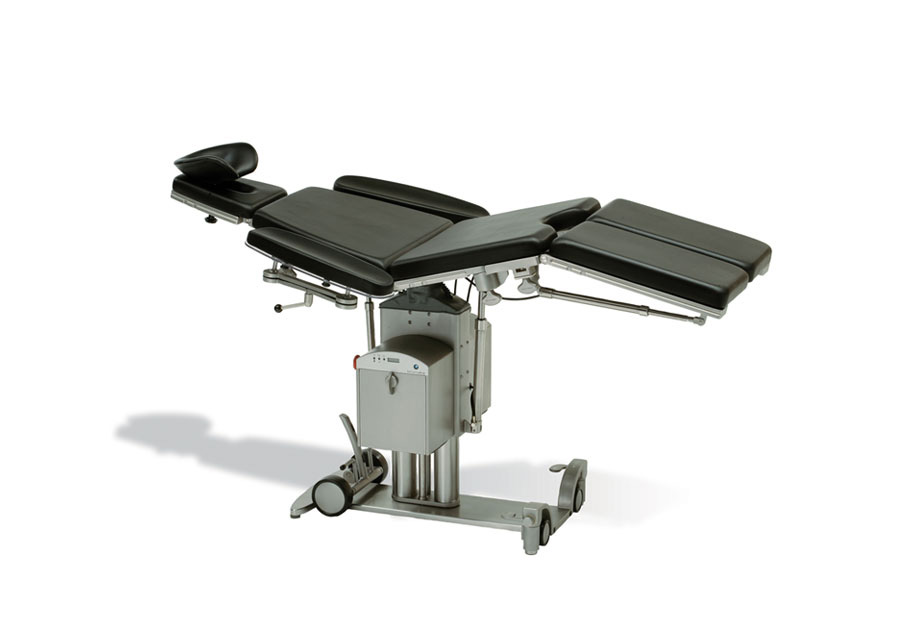

VARIUS – the most versatile operating table you have ever seen

As you might guess from its name, VARIUS has all functions an operating table needs for different medical speciality fields. It is the universal all-round talent among operating tables! In addition to its excellent properties such as the highly functional head section, the lateral tilting function and an external height adjustment, the divided foot section is especially useful for procedures in the area of the legs!



Advantages of the VARIUS at a glance

  • Clean and sturdy hygienic stainless steel construction
  • Divided foot section
  • Perfect working angle due to lateral tilting function of the patient surface
  • Working height adjustable with dual telescopic column
  • Using the memory function with 8 programmes, your patient positions are available at the push of a button
  • Perfect patient head position at all times with the patented telescopic head section and horseshoe-shaped headrest for the best possible access
  • Smooth lever and steering castor undercarriage for maximum mobility in the operating room.
  • Powerful 24V DC battery for cordless use
  • For tall patients, the length of the operating table can be adapted using the back section extension

Attractive features for your benefit

Pioneering surgery technology with ultra-modern functionality and sensible ergonomics in one: The brumaba VARIUS opens up new perspectives for your surgical work:

  • Dual telescopic column, adjustable from 610-1,040 mm
  • Lateral tilting
  • Memory function with 8 programmes
  • Divided foot section
  • Telescopic head section with horseshoe-shaped headrest
  • Back section extension for length adjustment
  • 24V DC battery pack operation
  • Remote control
  • Stainless steel construction
  • Fixed base plate L: 760mm - W: 430mm
    Fahrgestell Standard

Optional:

  • 2 GUIDE DRIVE "OR" VARIUS undercarriage (L 995 mm, W 508 mm, wheels 120 mm and 80 mm)
    Fahrwerk 2-Guide-Drive
  • 4 EASY DRIVE VARIUS undercarriage (L 1065 mm, W 600 mm, wheels 120 mm)
    Fahrgestell Original

Excellent performance parameters

Total length 1.770 mm - 1.940 mm
Total width 555 mm
Net weight 195 kg (+ 12 kg Polster)
Max. table load 300 kg
Max. head section load 100 kg
Max. foot section load 150 kg



Adjustment range
Height 610 - 1040 mm
Head section tilting angle -45° to +35°
Back section tilting angle -16° to +60°
Seat section tilting angle -31° to +43°
Foot section tilting angle -90° to +34°
Axial tilting angle -17° to +17°



Electrical characteristics
  24V DC
Class of protection IP X 4
Battery capacity 22 Ah
Running time when fully charged  1-2 weeks

Make the VARIUS even more versatile

VARIUS is extremely versatile. With a large assortment of suitable accessory elements, you can considerably expand its use for your practice or clinic:

VARIUS
