Product Details

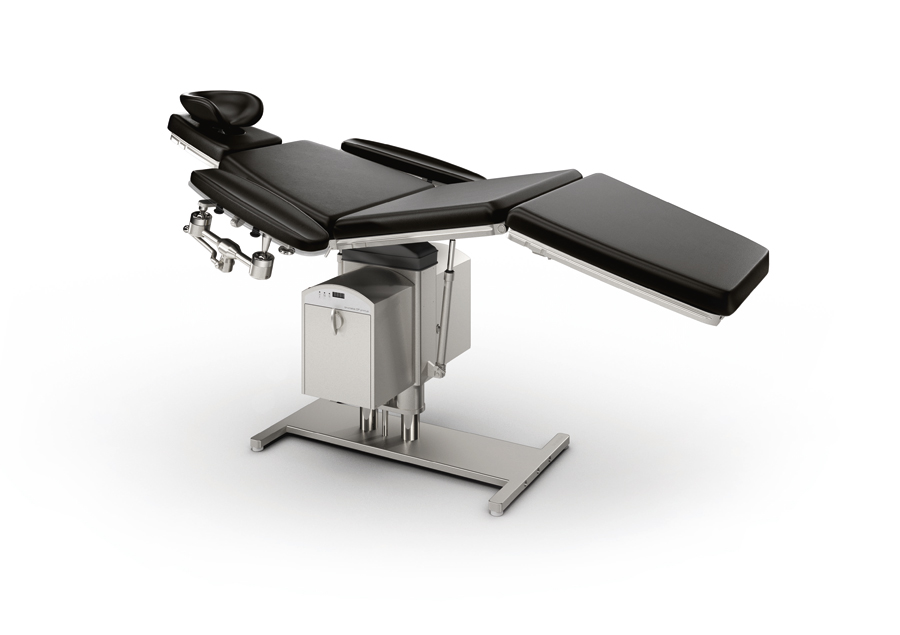

PRIMUS is at the top of its class

Just like FOCUS, PRIMUS offers you maximum legroom, 270-degree access and the perfect distance to the head of the patient. The patient surface of the PRIMUS is equipped with a lateral tilting function. With this feature, you have increased access possibilities for special positions.

The dual telescopic column allows for the lowest patient ingress height on the market! This means that even patients with restricted mobility can get onto the table easily. The high maximum setting is particularly useful for procedures in which the surgeon has to work in a standing position. With PRIMUS, you can stay focused and relaxed during the entire procedure!

The excellent and smooth mobility of your FOCUS operating table makes changing patients between procedures safe and easy. Combine optimised procedures with economic efficiency.

Advantages of the PRIMUS at a glance

  • Clean and sturdy hygienic stainless steel construction
  • Perfect working angle due to lateral tilting function of the patient surface
  • Working height adjustable with dual telescopic column
  • Using the memory function with 8 programmes, your patient positions are available at the push of a button
  • Perfect patient head position at all times with the patented telescopic head section and horseshoe-shaped headrest for the best possible access
  • Smooth lever and steering castor undercarriage for maximum mobility in the operating room.
  • Powerful 24V DC battery for cordless use
  • For tall patients, the length of the operating table can be adapted using the back section extension

Highly impressive standard equipment

The brumaba PRIMUS offers you a wealth of highly modern features. These features bring about countless tangible advantages for your practice. The most important benefits at a glance:


  • Telescopic column, adjustable from 520 - 950mm
  • Lateral tilting
  • Memory function with 8 programmes
  • Telescopic head section with horseshoe-shaped headrest
  • Lever and steering castor undercarriage
  • 24V DC battery pack operation
  • Remote control
  • Back section extension for length adjustment
  • Stainless steel construction
  • Fixed base plate L 760 mm, W 430 mm
    Fahrgestell Standard


  • 2 GUIDE DRIVE "OR" PRIMUS undercarriage (L 895mm, W 508 mm, wheels 120 mm and 80 mm)
    Fahrwerk 2-Guide-Drive
  • 4 EASY DRIVE PRIMUS undercarriage (L 905 mm, W 600, wheels 120 mm)
    Fahrgestell Original

Overview of central performance parameters

Total length 1.770 mm - 1.940 mm
Total width 555 mm
Net weight 175 kg (+ 10,60 kg Polster)
Max. table load 300 kg
Max. head section load    100 kg
Max. foot section load 150 kg


Adjustment range
Height 520 - 950 mm
Head section tilting angle -45° to +35°
Back section tilting angle -04° to +62°
Seat section tilting angle -10° to +40°
Foot section tilting angle -90° to +30°
Axial tilting angle    -17° to  +17°


Electrical characteristics
Operating voltage    24V DC
Class of protection IP X 4
Battery capacity 22 Ah
Operating time
when fully charged 1-2 weeks
