Product Details

GENIUS

A genius in premium quality with a great price/performance ratio.

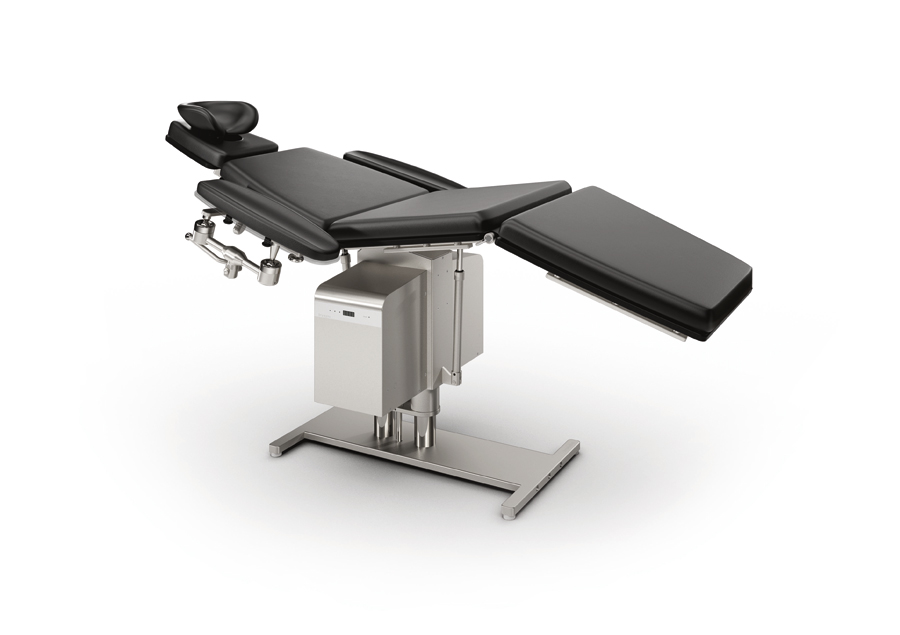

GENIUS is a high-performance, high-quality operating table. You can individually adapt it to your speciality for seamless integration into your surgical workflow. Versatile adjustment possibilities and a wide range of accessories provide for even more customisation options. With Genius, you can enhance all aspects of your daily medical work, while at the same time making it noticeably easier.

Due to its top price, GENIUS is the best choice if you want to open a new practice or if you are looking for an economic solution in general. This is made possible by the use of first-class alternative materials! GENIUS features the superior functions and sophisticated technology that are typical for brumaba products.

Advantages of the GENIUS at a glance

Individually adjustable working height
Telescopic head section with horseshoe-shaped headrest for perfect positioning of the patient's head
With the memory function, your main patient positions are available at the push of a button
Adjust the length with the back section extension to position very tall patients ergonomically

Technical ingenuity and maturity

The outstanding functional performance of the brumaba GENIUS becomes clear just by looking at its basic features. Carry on reading and we will explain to you all the things it can do:

Telescopic head section with horseshoe-shaped headrest
Memory function with 8 programmes
230 V mains plug operation
Back section extension for length adjustment
Remote control
Telescopic column Genius, adjustable from 585-865 mm
Stainless steel construction
Fixed base plate L: 760mm - W: 430mm

Optional:

24V DC battery operation
Dual telescopic column Genius, adjustable from 520-950 mm (+ 10 mm / -0 mm)
Foot control (type III)
Genius fixed wheel axle
Genius steering castor undercarriage
2 GUIDE DRIVE "CL" GENIUS undercarriage (L 850 mm, W 508 mm, wheels 80 mm)
4 EASY DRIVE GENIUS undercarriage (L 905 mm, W 600 mm, wheels 120 mm)

Configuration
With a wide range of options, you can precisely adapt the GENIUS to your needs. Among other attributes, you can choose from the following:

Undercarriage and foot control
In the standard version, the GENIUS comes with stable feet. If you need the table to be mobile before, during or after surgery, choose one of the two undercarriage versions. With two or four smooth-running, hygienically sealed steering castors, you can bring the patient table into the correct position for the next step of the procedure. The optionally available foot control ensures that all functions can be operated without contamination.

The four basic models of the GENIUS differ in their telescopic columns and in the power supply (with or without cable).

GENIUS	STN	DTN	STA	DTA
Mains	X	X
Battery pack			X	X
Single telescopic column	X		X
Dual telescopic column		X		X

You can also choose from three stand/undercarriage variations:

2 solid axles with 4 feet
1 fixed wheel axle and 1 steering castor undercarriage with brake
2 steering castor undercarriages with front and rear brake

A performance profile that is quite something

Max. length	2000 mm
Max: Width	560 mm
Net weight	140 kg
Max. patient weight	250 kg
Single telescopic column	585-865 mm
GENIUS dual telescopic column	520-950 mm (+ 10mm/ -0mm)

Outstanding in combination with special accessories
